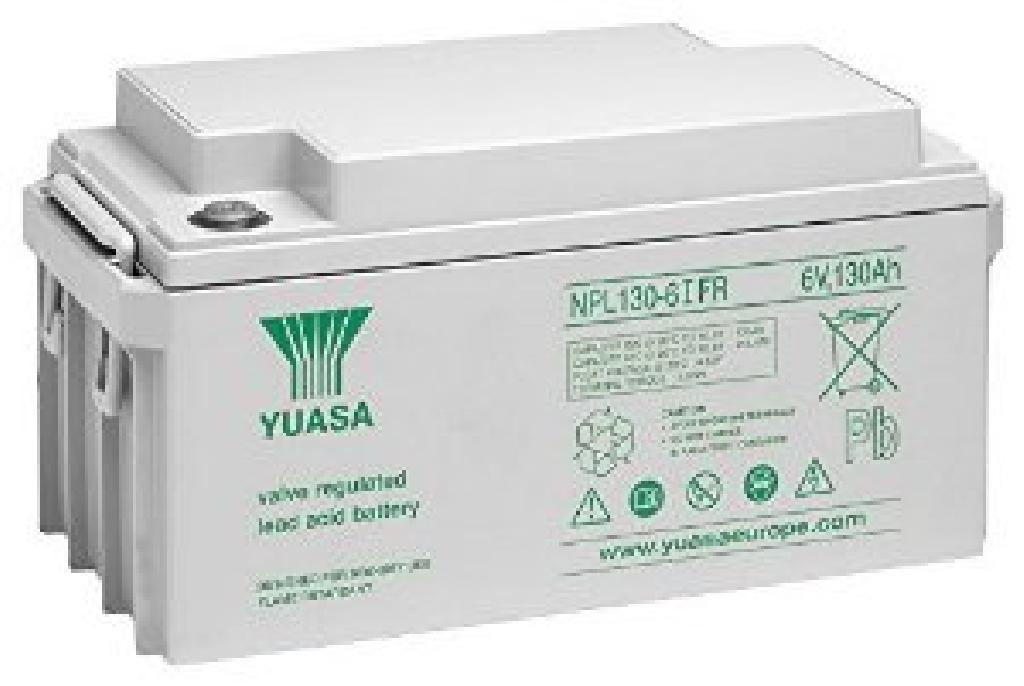

NPL130-6IFR (6V 130Ah) Yuasa General Purpose VRLA Rechargeable Battery
Please contact us to get the latest price for this product
1 in-stock.
1 in-stock.
Enter your postcode to get a quick quote for postage!
Tell a friend. Enter their email address here!
Sealed valve regulated lead acid batteries from Yuasa with an extended life. The NPL range is an enhanced NP design resulting in a longer service life (7 - 10yrs). All other attributes and operational characteristics are the same, thereby maintaining the benefit of a common mechanical and electrical design for users of both products. Yuasa NP batteries are the most reliable batteries in the world, making the NPL the most reliable but with a much longer life, which is why industry choose Yuasa over any other battery for security and fire systems; they are the ideal battery for emergency lighting; the ideal battery for telecoms and uninterruptible power source (UPS) applications.
SPECIFICATIONS
| WARRANTY | 12 Months |
| Name | NPL130-6IFR (6V 130Ah) Yuasa General Purpose VRLA Rechargeable Battery |
| Code | NPL130-6IFR |
| Nominal voltage | 6 |
| AH | 130 |
| AH RATING | 20-hr rate Capacity to 10.5V at 20°C |
| Length | 350 |
| Width | 166 |
| Height | 174 |
| Weight | 23 |
TERMINAL TYPE
| Terminal Type | M6(F) |
| Torque | 4.8 |
| Storage (in fully charged condition) | -20°C to +50°C |
| Charge | -15°C to +50°C |
| Discharge | -20°C to +60°C |
| Capacity loss per month at 20°C (approx) | 3 |
| Standard Option | ABS (UL.94:HB) |
| Flame retardant option (FR) | ABS (UL94:V0) |
| Float charge voltage at 20°C | 2.275 (±1%) |
| Float charge voltage at 20°C | 2.275 (±1%) |
| Float Charge voltage temperature correction factor (for variations from the standard 20°C) | -3 |
| Cyclic (or Boost) charge at 20°C | 2.42 (±3%) |
| Cyclic (or Boost) charge at 20°C | 2.42 (±3%) |
| Cyclic Charge voltage temperature correction factor (for variations from the standard 20°C) | -4 |
| Cyclic (or Boost) charge current limit | 32.5 |
| 1 second | 500 |
| 1 minute | 260 |
| Measured at 1 kHz | 2.5 |
